AyMINE Framework integrates end-to-end file encryption to the download / upload process on-the-fly.

In the moment you have file linked with record in the data vault, file encryption runs in the process automatically.

End-to-end Encryption Integration to File Management

Upload process

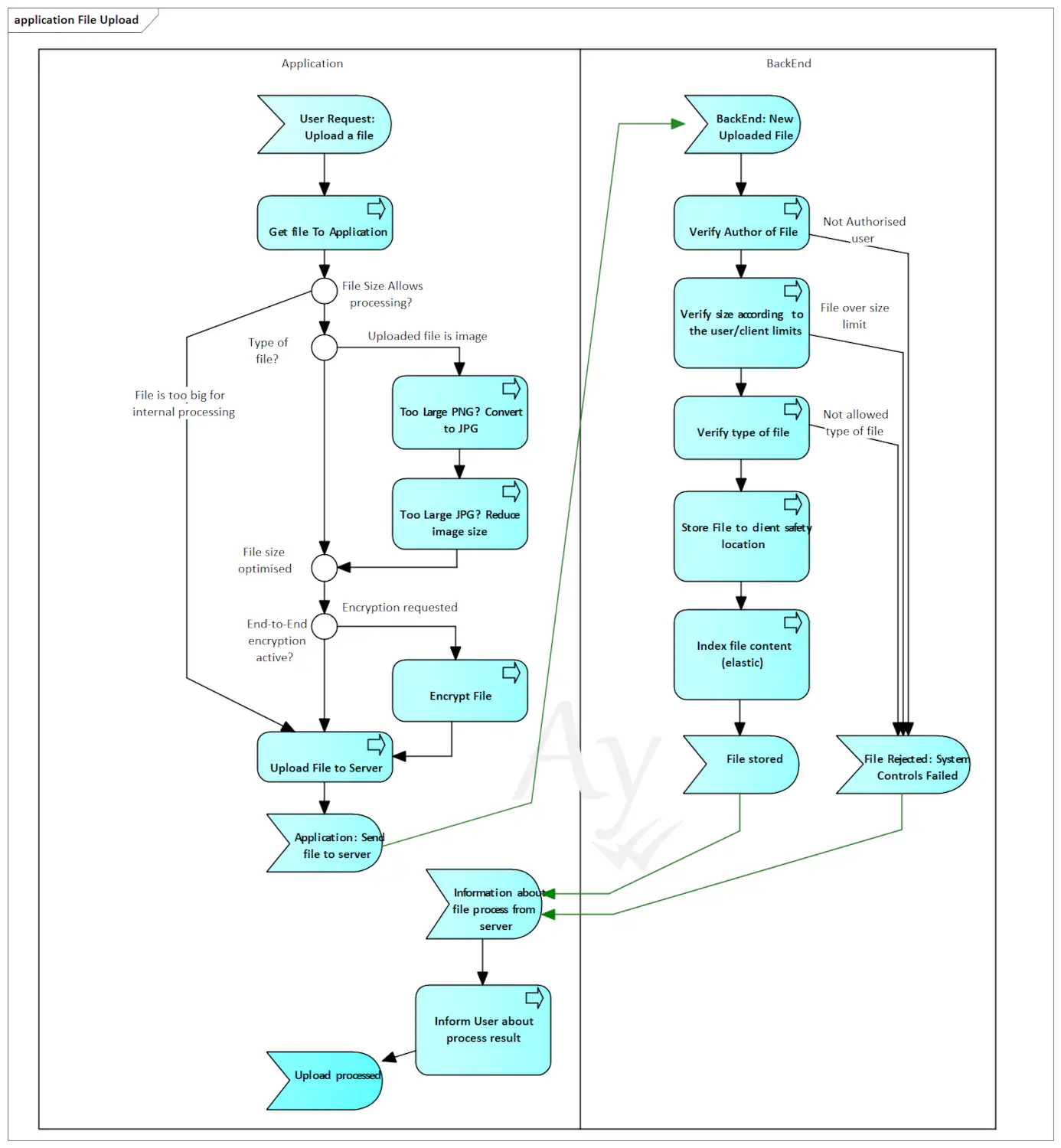

The following scheme presents how the on-the-fly file encryption is integrated (you can click on image to get it larger):

Not all files are processed

The upload process controls files and process them before uploading the server. Files are not send directly by system functions, although in the end of process, regular hppts upload is used via the fetch method.

What processing is managed by application:

• It reduces size of the image. It is useful especially when it takes pictures directly from the phone camera. It is also used for large screenshot. Each client could have individual limit for image size
• It encrypt file, if it is linked with record that is stored in the vault. Files are encrypted using the same vault as the file's master record.

Internal processes requires repeatable in-memory operation with file both on client and server. It could consume too much resource for huge files (packed archives or video). Therefore, the system has set limit for processed files. If user has higher limit allowed, larger files are uploaded / downloaded without end-to-end encryption. (Sure, that is still https communication encryption active.)
Common limits for clients:

• Users can upload files up to the 300MB
• Files up the 30MB can be on-the-fly encrypted.

Download process

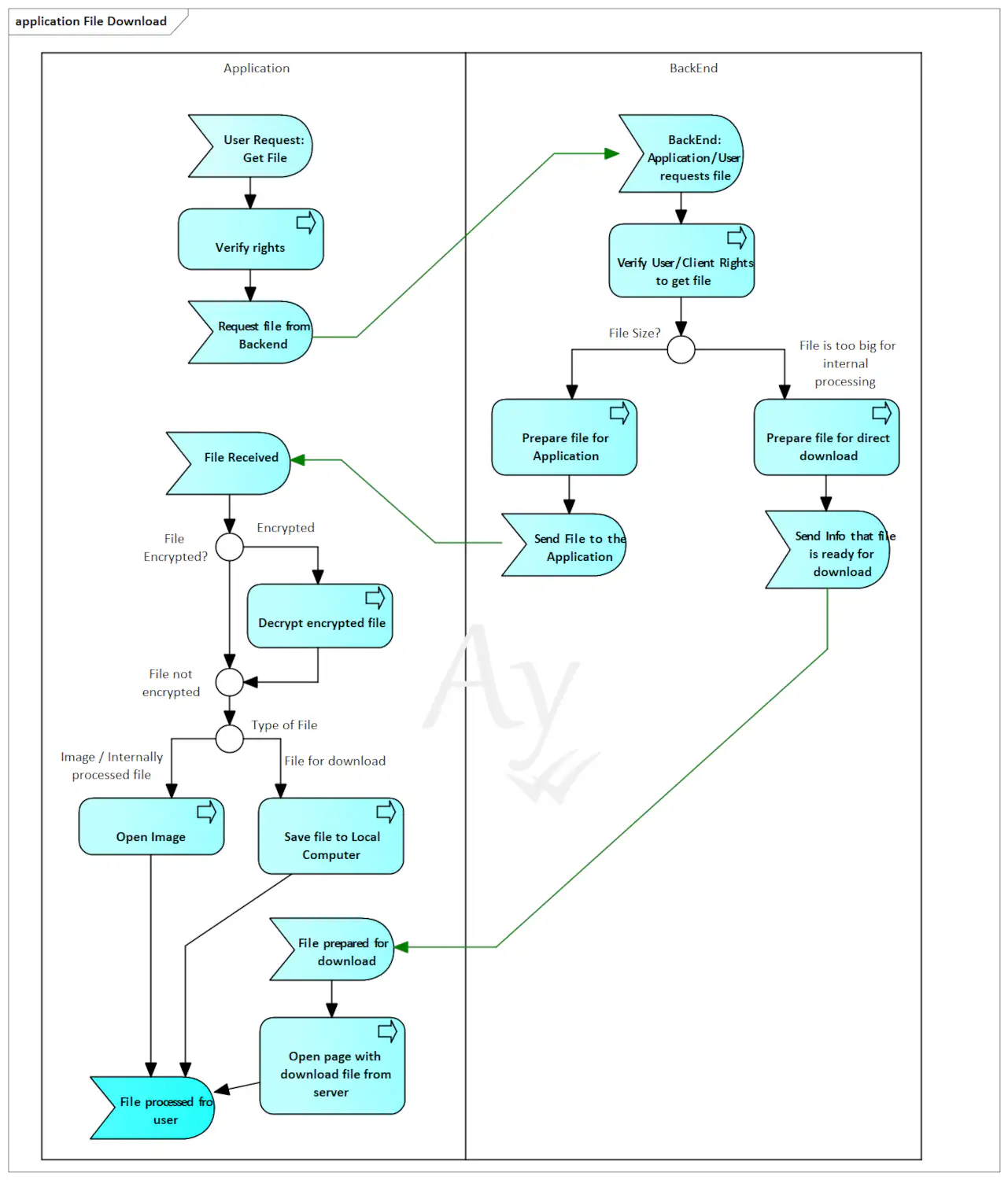

Contravise to upload, download decrypt file during the download:

Files are processed directly after the download. Download of smaller files (to the 30MB limit) is managd by application internally and they are on-the-fly processed before they are stored.
Files with size above the limit for processing are downloaded in a separate connection directly to the server. They are not processed by application when downloaded.

Risk in the file encryption: User's device

AyMINE decrypt files on-the-fly and saves them decrypted. It does not protect file when it is stored in the computer. Even when user deletes a file, it is mostly a year or longer in the trash.

End-to-end file encryption gives you 100% certainty that on one else get access to the file. Neither administrator, nor the cloud service provider. But it does not protect against user's mistake or non-properly managed local computer.

Recommendation: Whenever possible, store sensitive, private or critical data in AyMINE records, not in files. Although both is encrypted and handled by AyMINE in the same ways and the same level of safety overall lifecycle process of encrypted records in system is much more safe that files that stay also outside the system.

File-sharing basic services

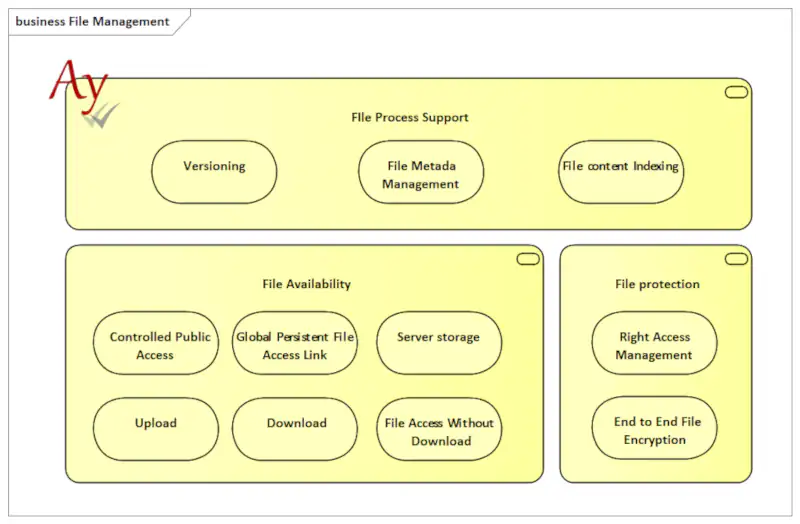

Image presents basic services provided by file-sharing system.
